Mobile Smart Mushroom Cultivation Station
Category: Mobile Smart Mushroom Space Station
| Model | Size |
|---|---|
| SR-20 | 6000mm |
1. Flexible installation and strong site adaptability: the standardized intelligent cultivation container adopts a fully modular design and can be assembled quickly on site without complex civil works. Level ground, factory yards, courtyards and cultivation bases can all be brought into service directly, with simple installation and a short commissioning period.
2. Stable returns and short payback period: the container uses a high-density vertical growing mode with far higher space utilisation than a conventional greenhouse, allowing multiple production cycles year-round regardless of season or weather. Stable yields and low losses effectively shorten the project payback period and deliver continuous cultivation returns.
3. Durable equipment with a long service life: built on a high-strength container-grade structure with excellent anti-corrosion, waterproof and sealing performance. The built-in temperature control, humidity control, ventilation and water circulation systems are stable and durable, supporting long-term continuous operation for uninterrupted commercial cultivation all year round.
4. Compatible with mains power and conventional generators for a stable, universal power supply: the unit runs on standard mains electricity and also accepts emergency supply from a backup generator, suiting the power conditions of most cultivation sites. No special supporting facilities are required to meet the routine power demand of any site.
5. Round-the-clock constant temperature for stable night cultivation: a fully automatic intelligent control system keeps cabin temperature, humidity, fresh air and CO₂ concentration constant 24 hours a day. Stable night operation maintains optimal fruiting conditions and avoids poor quality, deformity and yield loss caused by large day-night temperature swings and environmental fluctuation.
6. Sealed and clean, with minimal dust and contaminant build-up: the fully enclosed container has a flat, tight outer surface that resists dust and debris. Together with the fresh-air filtration system it effectively blocks outside contaminant fungi, pests and dust, greatly reducing contamination risk and raising the qualified-product rate.
7. Outstanding temperature control for a more balanced growing environment: the cabin shell offers superior thermal insulation that isolates external high and low temperature interference. Uniform, stable internal temperature promotes balanced mycelium growth and fruiting for higher overall quality.
8. Simple operation and maintenance with lower running costs: the system is highly integrated and intelligent, with a simple, stable structure and a low failure rate. Compared with conventional greenhouse cultivation, it needs no large labour force for temperature adjustment, watering or ventilation. Daily operation is simple, sharply cutting labour and maintenance costs for lightweight, efficient production.
| 40ft Mushroom Cultivation Container (Grid Rack Type) | ||
| No. | Parameter | Value |
| 1 | Product name | 40ft Mushroom Cultivation Container (Grid Rack Type) |
| 2 | Overall dimensions | 12 × 2.5 × 2.9 m |
| 3 | Power supply | 220V 50Hz; 380V / 60Hz overseas version optional |
| 4 | Max. input power | 13 kW (peak); normal running power 5-7 kW |
| 5 | Substrate bag capacity | 4,200-5,200 bags (fits standard substrate bags φ120 × 240 mm) |
| 6 | Yield per batch | 2,000-3,000 kg |
| 7 | Ambient operating temperature | -35℃ ~ 45℃ |
| 8 | Cabin operating temperature | 10℃ ~ 30℃ |
| 9 | Adjustable cabin humidity | 35-99%; recommended working humidity for mushroom cultivation 80-95% |
| 10 | Cabin CO₂ control range | 400-5,000 ppm |
| 11 | Supplementary lighting | Full-spectrum LED, white / blue optional, PPFD configurable on demand |
| 12 | Floor area | 30 m² |
| 13 | Cabin colour | White or customised |
| 14 | Empty weight | 6 t (excluding substrate bags and materials) |
| 15 | Note | The above are standard configuration parameters. Dimensions, internal racking, temperature control, power supply and lighting solutions can all be customised in design, production, construction and delivery. Under extreme high or low ambient temperatures, auxiliary heating or cooling units are recommended. Yield is the theoretical output per batch under standard substrate bag conditions; actual yield varies with species and operation management. |
Shanhairuo Smart Cultivation Space Station · Core Components & Parameters
Compiled from on-site photos and confirmed parameters · October 2026
A | Container Structure
A-01 Insulated Container Body (converted from a 40ft standard refrigerated container)
◆ Converted from finished refrigerated containers: sturdy structure, short conversion cycle
Converted from a 40ft standard refrigerated container. The exterior steel plates are spray-painted with anti-rust paint, the interior is fully clad in stainless steel, and the cabin floor is a textured aluminium-alloy floor that is slip-resistant, corrosion-resistant and easy to wash and drain, so it can serve long-term in the high-humidity conditions of a growing environment.
B | Environmental Control System
B-01 4HP Smart Energy-saving Heating & Cooling Unit
◆ Smart energy saving: approx. 30% less power than conventional units
The 4HP smart energy-saving unit is installed in the side compartment of the container, occupying no growing space; its powder-coated carbon-steel housing is corrosion-resistant. Working with the smart controller, it automatically cools and heats to maintain a 15-25°C growing temperature zone inside the cabin.
B-02 High-pressure Micro-mist Nozzles
◆ Approx. 5μm micro-mist for even cabin-wide humidification
30 stainless-steel high-pressure micro-mist nozzles are mounted on the cabin ceiling. Fine atomization and fast diffusion maintain 60-95%RH humidity with uniformity better than ±5%RH; the high-pressure piping is pressure-resistant, and clogged nozzles can be removed and cleaned, making daily maintenance simple.
B-03 High-pressure Micro-mist Pump Station / Water Treatment Unit
◆ Stainless steel pump station + brass pump body for continuous, stable high-pressure output
The power core of the micro-mist humidification system: with built-in filtration and pressure regulation, it provides a continuous, stable high-pressure water supply to all misting nozzles in the cabin.
B-04 Fresh Air Unit
◆ Forced fresh-air exchange keeps cabin air constantly fresh
A forced ventilation unit recessed in the container side wall, working with the negative-pressure exhaust system to continuously supply fresh air to the sealed cabin and discharge waste gas and excess moisture, preventing disease caused by humid, stifling conditions. The air-exchange frequency is automatically adjusted by the control cabinet according to the crop variety.
C | Supplementary Lighting System

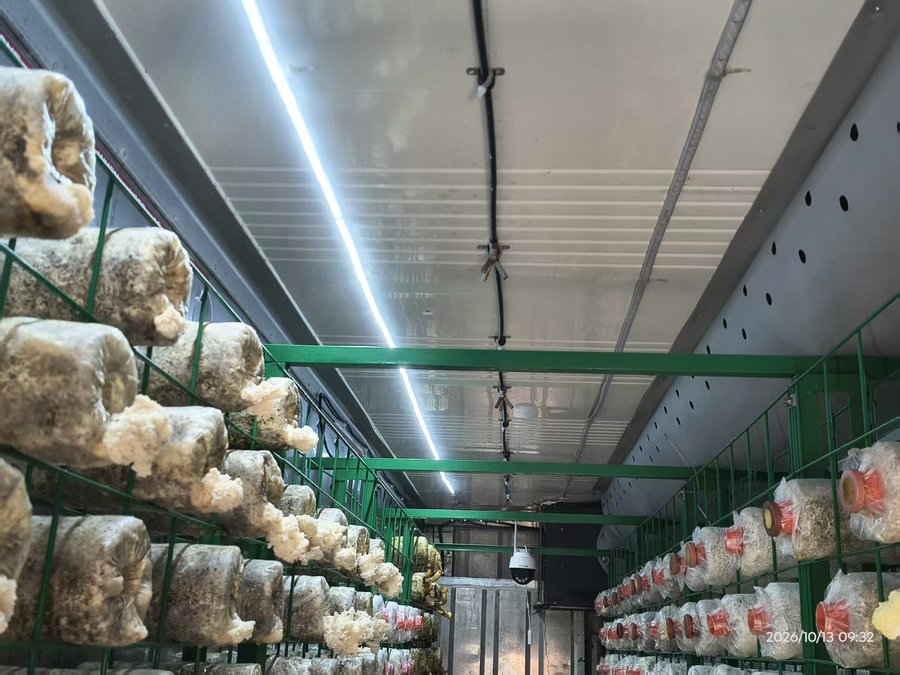

C-01 SMD3030 Full-spectrum LED Light Bars
◆ Full-spectrum supplementary lighting with adjustable 0-1000lx illuminance
SMD3030 full-spectrum waterproof LED light bars are arranged along the cabin ceiling, meeting the diffuse low-light requirements of mushrooms during fruiting. Together with the smart controller they switch and dim automatically by variety and growth stage, with low power consumption and long service life. Supplementary lighting schemes for high-illuminance crops such as leafy greens can be customized on demand.
D | Cultivation System

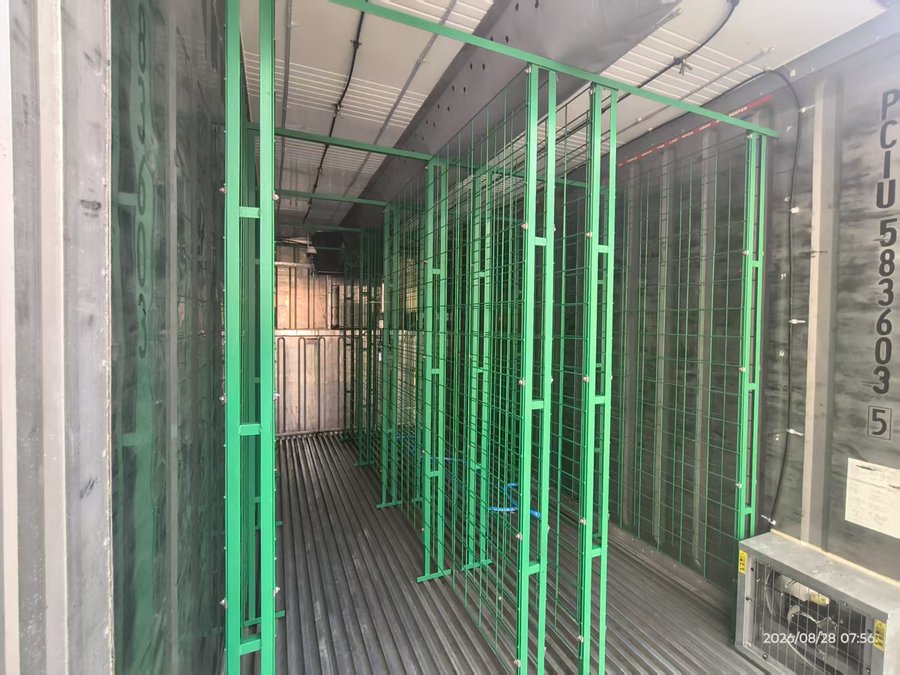

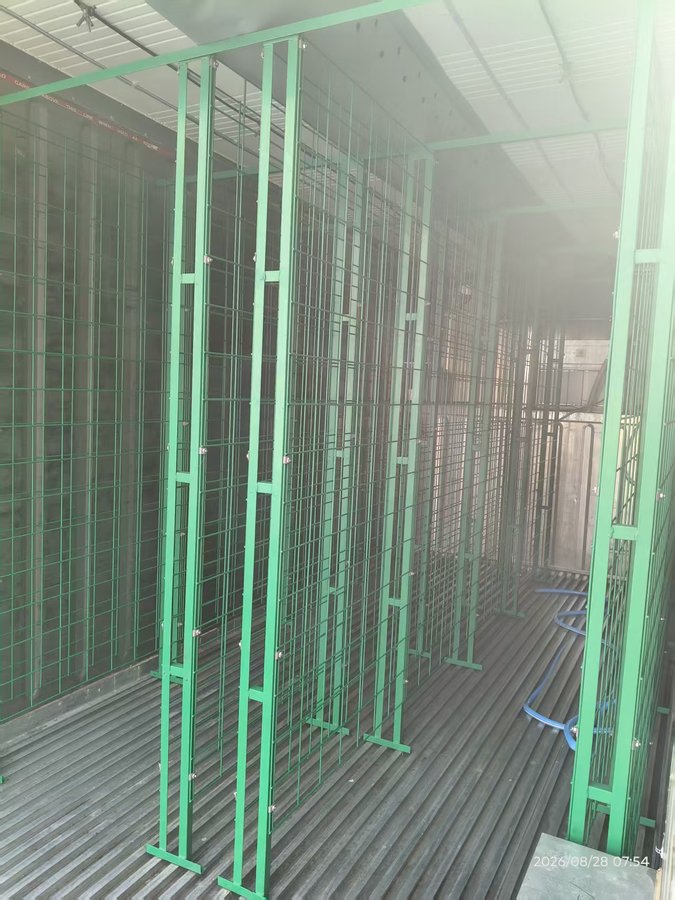

D-01 Grid Racks (multi-tier mushroom racks)
◆ Standard grid racks keep spawn bags stable

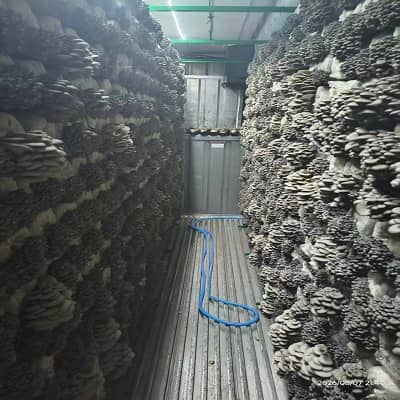

Green powder-coated steel multi-tier grid racks hold spawn bags and mushroom bottles upright and stable with tidy fruiting faces. The tiered design makes full use of the cabin's vertical space, with smooth ventilation and easy installation, suited to vertical mushroom cultivation.

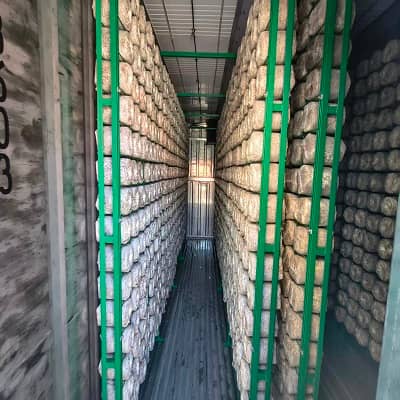

D-02 Shelving Racks (spawn-bag racks)
◆ 2.3m-high vertical racks for high space utilization
Green powder-coated steel racks, 2 rows in the cabin; the multi-tier crossbar structure bears load evenly and suits bag-cultivated mushroom fruiting. Working with the misting and fresh-air systems, temperature and humidity are more uniform between upper and lower tiers.
E | Intelligent Control System

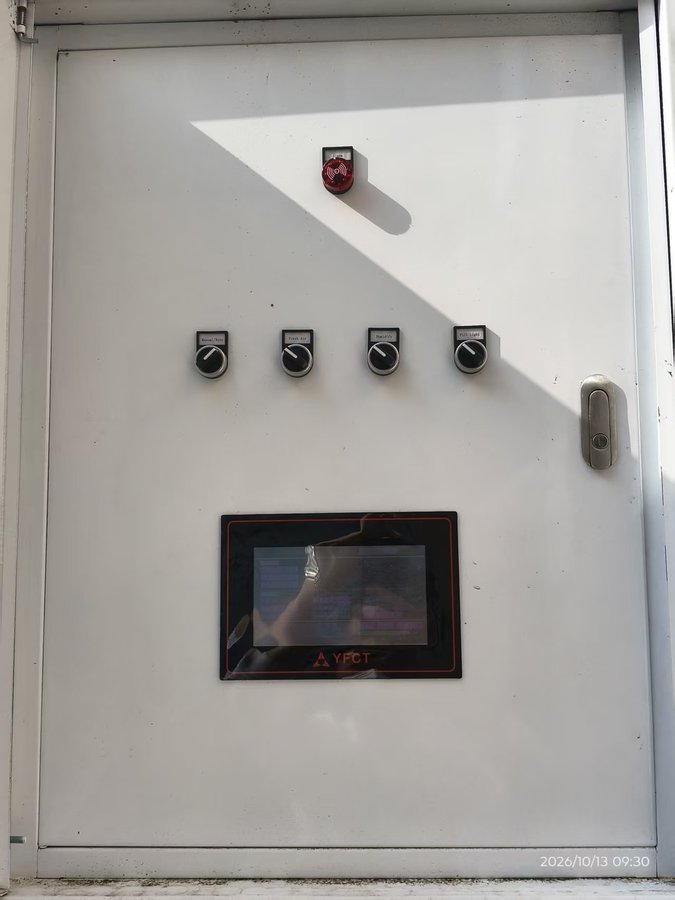

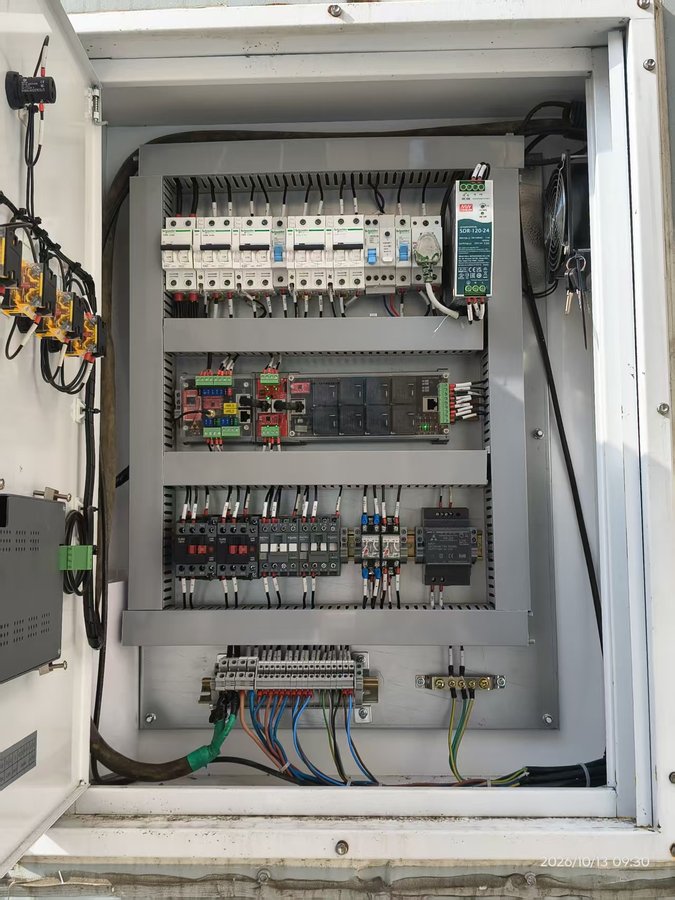

E-01 Main Control Cabinet
◆ Touch-screen smart control, read and adjust on site
Custom smart control cabinet with a touch display, mode knob and audible-visual alarm integrated on the panel, allowing on-site viewing of real-time cabin data such as temperature, humidity and CO2. Once growing parameters are set, equipment such as cooling, humidification, ventilation and supplementary lighting runs automatically. Corresponding control programs are configured by crop type.

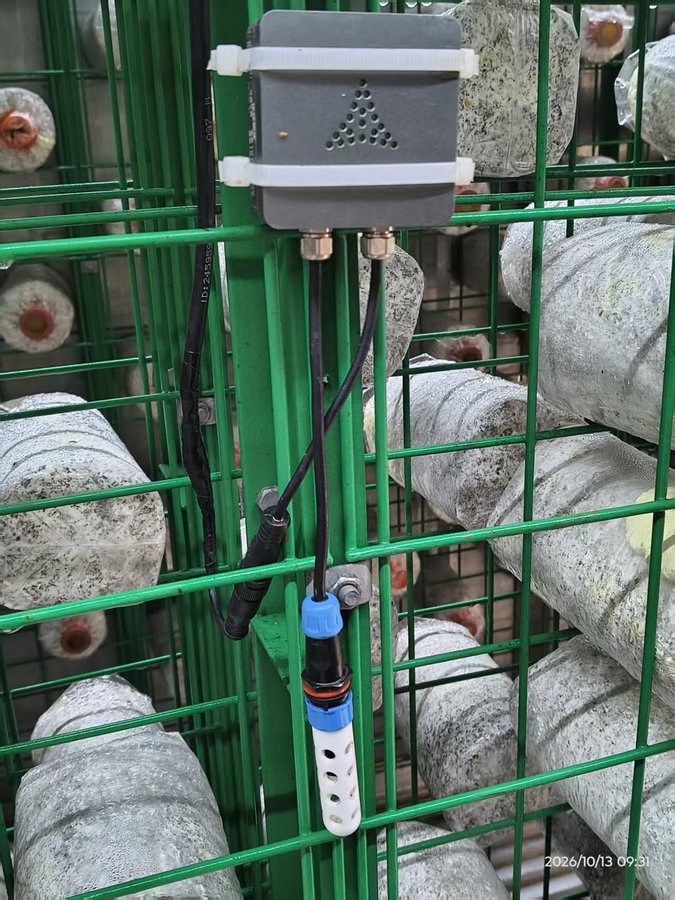

E-02 Temperature & Humidity / CO2 / Light Sensors
◆ Real-time multi-parameter sensing: the “eyes” of automatic control
Temperature, humidity, CO2 and other sensors are installed in the cabin, transmitting real-time data back to the control cabinet and cloud platform as the basis for automatic start/stop of cooling, humidification and ventilation equipment. The sensors feature radiation shields and are suspended in the middle of the growing area, so readings more closely reflect the actual crop environment.
E-03 4G Cloud Platform Gateway (mobile APP remote monitoring)
◆ Real-time monitoring via mobile APP: growing data at a glance
Cabin data is uploaded to the cloud platform via 4G/wireless network, and the mobile APP allows remote viewing of temperature, humidity, CO2 concentration, growing cycle and other information, as well as remote control of cooling, heating, exhaust, humidification and supplementary lighting. Real operating example: oyster mushroom cabin, 100 m², day 5.8 of cultivation, cabin conditions 19.7°C / 90.7%RH / CO2 926 ppm.
